uhmw pe sheet

  • uhmw pe sheet
uhmw pe sheet

uhmw pe sheet

  • max.thickness:300mm
  • max.length:6000mm
  • max.width:2000mm
  • ptoduction type"mould pressing
  • Product description: uhmw pe sheet
  • INQUIRY

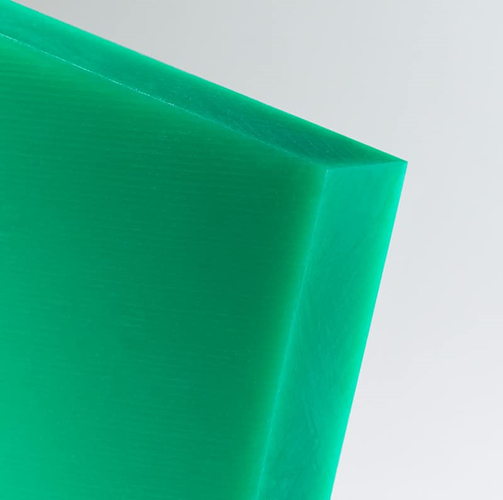

China UHMW-PE Sheet made by Shandong Huao Plastic Co.,Ltd

UHMWPE (UltraHigh Molecular Weight Polyethylene) is polyethylene with a molecular weight numbering in the millions, usually between 3 and 9 million. The high molecular weight makes it a very tough material with a lot of great properties like high wear-resistance, corrosion resistance, low friction coefficient, anti-aging, inflammation-preventing and electrostatic-resistance.

Specification

1. Standard size:

1250x2500mm

1300x4300mm

1250*5000mm

4520x2000mm

1000*2000mm

2000*6000mm

3030*1550mm

1800*2000mm


3. Normal Color: Black, White, Blue, Red, Yellow, Green2. Thickness: 6~300mm

Remarks: Other color or size can be made according to per customer’s requirement.

Technical Parameters:

Density

g/cm3

0.93-0.96

Average molecular weight

g/mol

3million- 10 million

Tensile strength (23°C in air)

MPa

22

Breaking strength

MPa

42

Charpy impact strength (notched)

mJ/mm2

No break

Shore hardness

--

65-70

Abrasion

%

70-80, steel = 100

Static Friction Coefficient

--

≤0.16

Water Absorption

--

NIL

Elongation at break at 23°C

%

≥300

Temperature Resistance

°C

-269 to +85

Main Features:

• Extremely high impact strength

• Excellent wear and abrasion resistance

• Optimal sliding properties

• Energy absorption capacity at high loading rates

• Water repellent

• Good chemical resistance

• Electrical and dielectric properties

• Physiologically harmless

Application of UHMW-PE

1.  Chemical Engineering: Corrosion and wear resistantance mechanical parts

2.  Thermal power: coal handling, storage of coal, warehousing chute lining

3.  Coal processing: sieve plate, filter, U-underground coal chute

4.  Concrete: cement raw and finished product silo silo lining

5.  Grain: food storage or chute lining

6.  Mining: sieve plate, chute linings, wear anti-bonding part

7.  Food industry: starshaped wheel, transmission timing bottle screw, bearings, guiderollers, guides, slide blocks, etc.
